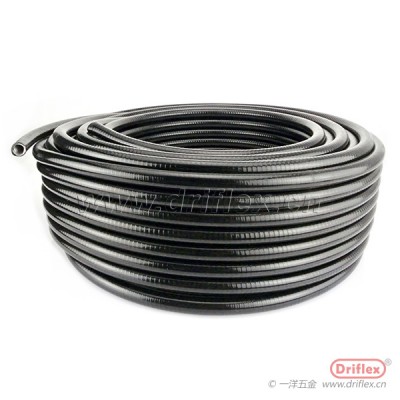

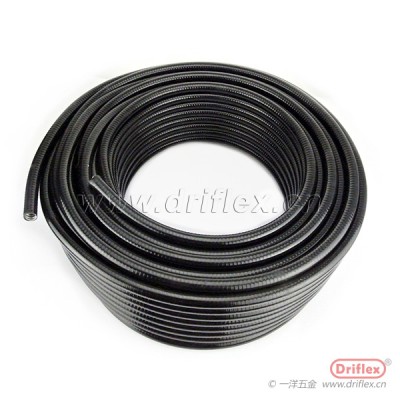

防水金属平包塑软管
Model: LT-B or G
Description:
加棉线防水金属软管
镀锌铁皮制成,表面被覆耐延烧PVC材料.
柔软性及防水效果.
吸收移动和震动的性能,多方向弯曲挠性.
3/8"至1-1/4"嵌入一棉纱填封,1-1/2"至4"以反扣结构制作.
耐温范围从-20度至+105度.
适合使用于油气,水气重之场所.
PVC包塑，有选择黑色、灰色、橙色.

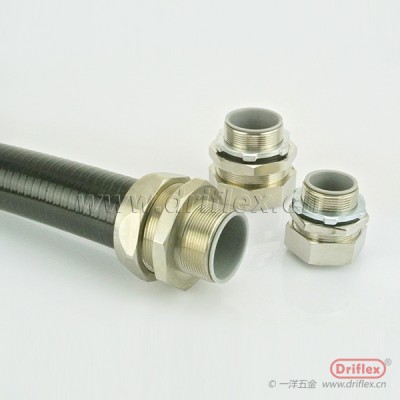

适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | Min.inner (mm) | Max.outer (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| LT-10B/G | 16 | 3/8" | 12.3 | 18.0 | 50 | 50 |
| LT-11B/G | 20 | 1/2" | 15.8 | 21.3 | 65 | 50 |
| LT-12B/G | 25 | 3/4" | 20.6 | 26.7 | 85 | 50 |
| LT-13B/G | 32 | 1" | 26.4 | 33.4 | 105 | 50 |
| LT-14BG | 40 | 1-1/4" | 34.2 | 42.2 | 135 | 25 |
| LT-15B/G | 50 | 1-1/2" | 40.0 | 48.3 | 160 | 25 |
| LT-16B/G | 63 | 2" | 51.0 | 60.3 | 200 | 20 |
| LT-17B/G | 75 | 2-1/2" | 63.0 | 73.0 | 250 | 10 |
| LT-18B/G | 90 | 3" | 76.8 | 88.9 | 320 | 10 |
| LT-19B/G | 100 | 4" | 98.5 | 114.3 | 400 |
10 |
