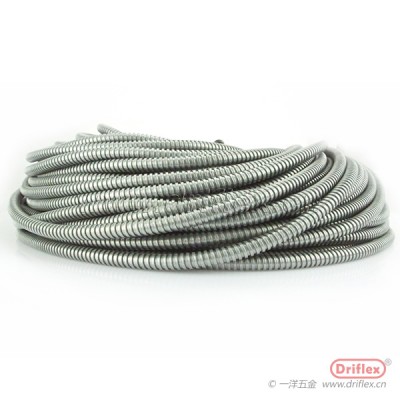

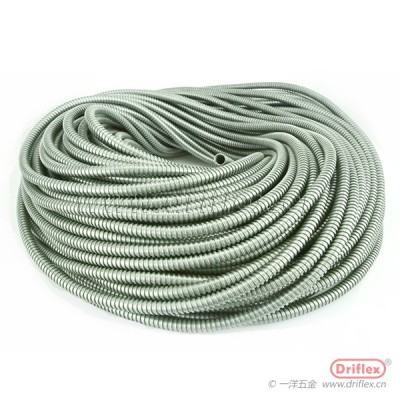

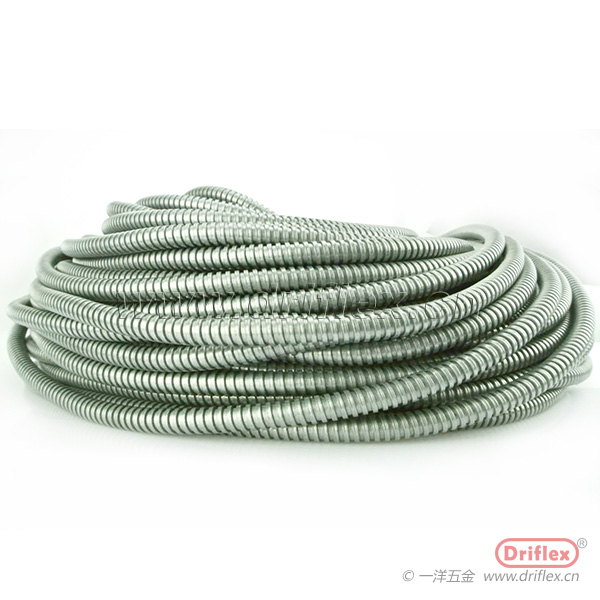

镀锌钢带单勾软管
Model: S-12
Description:
镀锌钢带制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
|
Part No
|
Normial Size
|
Inner Diameter
mm
|
Outside Diameter
mm
|
O.D After PVC Coated
|
Length Of Each Roll
|
|||
|
Interlocked
|
Squarelocked
|
M
|
||||||
| S-10 | 3/8" | 12.5 | 15.7 | 18.0 | 16.6 | 50 | ||
| S-11 | 1/2" | 15.7 | 19.1 | 21.3 | 20.0 | 50 | ||
| S-12 | 3/4" | 20.8 | 24.3 | 26.7 | 25.5 | 50 | ||
| S-13 | 1" | 26.0 | 30.0 | 33.2 | 31.6 | 30 | ||
| S-14 | 1-1/4" | 35.0 | 40.0 | 42.2 | 42.0 | 30 | ||
| S-15 | 1-1/2" | 40.0 | 45.0 | 48.0 | 47.0 | 20 | ||
| S-16 | 2" | 51.0 | 56.0 | 59.6 | 59.0 |
10 |
||
