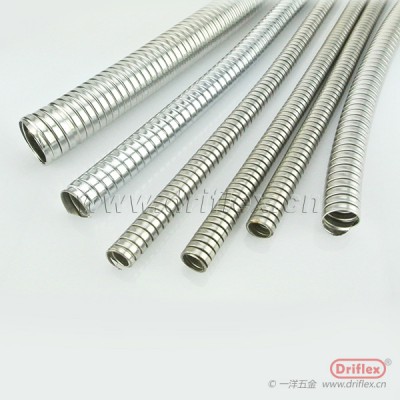

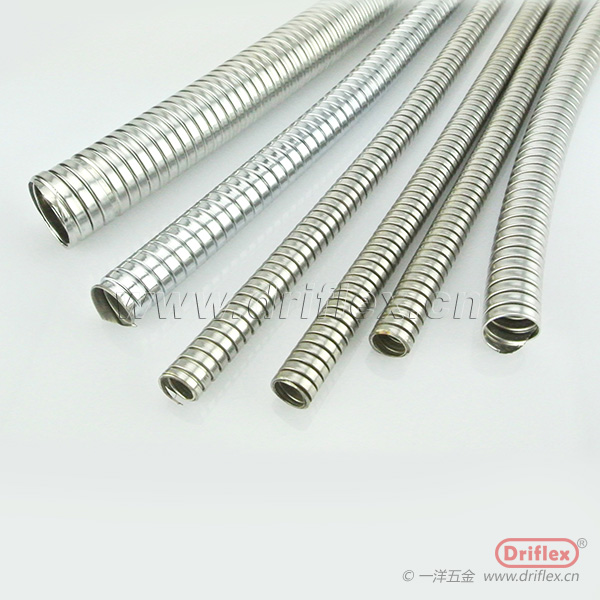

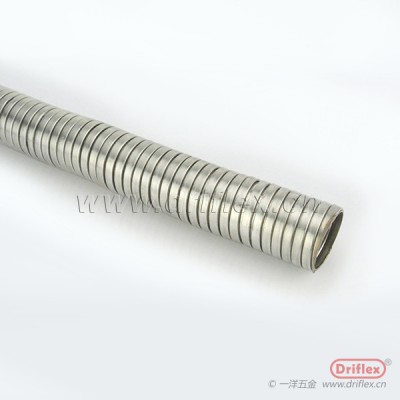

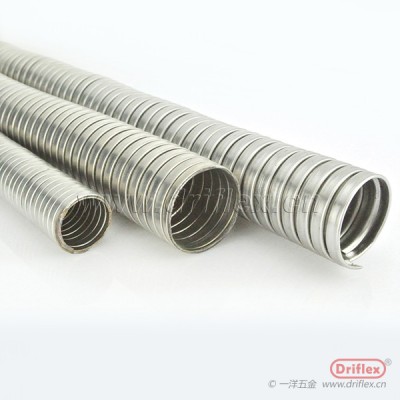

不锈钢双勾软管
Model: FM-12ISS
Description:
不锈钢制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
|
Part No
|
Normial Size
|
Inner Diameter
mm
|
Outside Diameter
mm
|
|||
|
Length Of Each Roll
M
|
||||||
| FM-2ISS | 4.0 | 6.0 | 100 | |||
| FM-3ISS | 4.6 | 6.6 | 100 | |||
| FM-4ISS | 5.0 | 7.0 | 100 | |||
| FM-5ISS | 5.4 | 7.8 | 100 | |||
| FM-6ISS | 5.9 | 8.4 | 100 | |||
| FM-7ISS | 6.0 | 8.0 | 100 | |||
| FM-8ISS | 7.0 | 9.0 | 100 | |||
| FM-9ISS | 1/4" | 9.5 | 12.5 | 100 | ||
| FM-10ISS | 3/8" | 12.5 | 15.7 | 100 | ||
| FM-11ISS | 1/2" | 16.1 | 19.5 | 100 | ||
| FM-12ISS | 3/4" | 20.8 | 24.3 | 50 | ||
| FM-13ISS | 1" | 26.0 | 30.0 | 50 | ||
| FM-14ISS | 1-1/4" | 34.0 | 39.0 | 50 | ||
| FM-15ISS | 1-1/2" | 39.0 | 44.0 | 30 | ||
| FM-16ISS | 2" | 51.0 | 56.0 |
20 |
||
