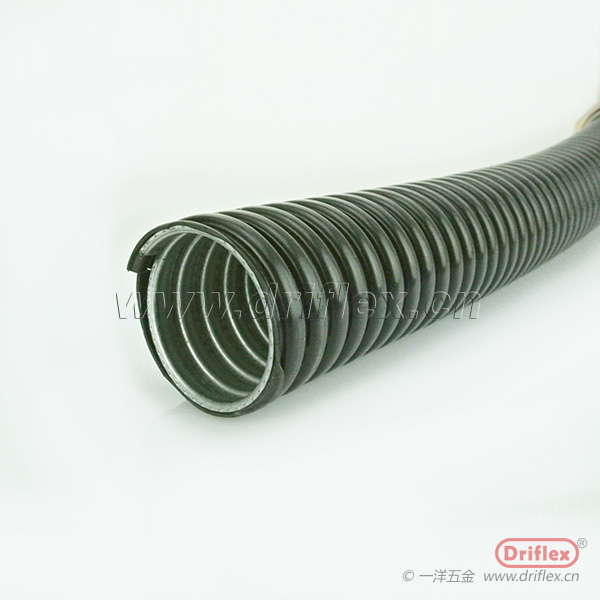

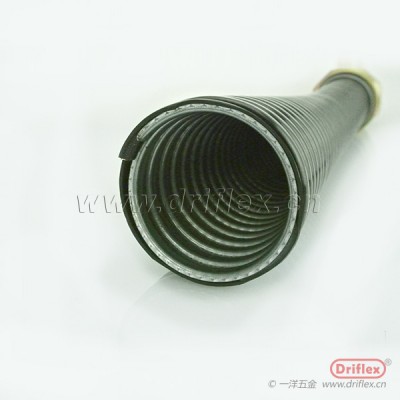

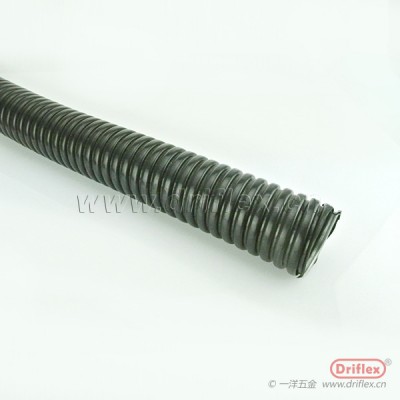

波浪型防水金属软管
Model: VJ-11
Description:
镀锌铁皮制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
Part No
Nominal Size
ISO (mm)
Nominal Size
US (inches)
I.D. (mm)
O.D. (mm)
Min. Bend
Radius (mm)
Length
(M/coil)
VJ-10
16
3/8"
12.3 - 12.8
16.7 - 17.2
50
50
VJ-11
20
1/2"
15.8 - 16.3
20.2 - 20.7
65
50
VJ-12
25
3/4"
20.7 - 21.2
25.5 - 26.1
75
50
VJ-13
32
1"
26.0 - 26.6
31.6 - 32.2
100
50
VJ-14
40
1-1/4"
34.7 - 35.4
40.8 - 41.5
125
30
VJ-15
50
1-1/2"
40.0 - 40.6
46.6 - 47.2
150
30
VJ-16
63
2"
51.3 - 51.9
58.1 - 58.7
175
20
VJ-17
75
2-1/2"
63.0 - 63.6
71.8 - 72.4
200
10
VJ-18
90
3"
78.0 - 78.7
87.2 - 87.9
225
10
VJ-19
100
4"
101.6 - 102.6
111.2 - 112.3
275
5
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
Model: VJ-11
Description:
镀锌铁皮制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
| Part No |
Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) | O.D. (mm) |
Min. Bend Radius (mm) |
Length (M/coil) |
|---|---|---|---|---|---|---|
| VJ-10 | 16 | 3/8" | 12.3 - 12.8 | 16.7 - 17.2 | 50 | 50 |
| VJ-11 | 20 | 1/2" | 15.8 - 16.3 | 20.2 - 20.7 | 65 | 50 |
| VJ-12 | 25 | 3/4" | 20.7 - 21.2 | 25.5 - 26.1 | 75 | 50 |
| VJ-13 | 32 | 1" | 26.0 - 26.6 | 31.6 - 32.2 | 100 | 50 |
| VJ-14 | 40 | 1-1/4" | 34.7 - 35.4 | 40.8 - 41.5 | 125 | 30 |
| VJ-15 | 50 | 1-1/2" | 40.0 - 40.6 | 46.6 - 47.2 | 150 | 30 |
| VJ-16 | 63 | 2" | 51.3 - 51.9 | 58.1 - 58.7 | 175 | 20 |
| VJ-17 | 75 | 2-1/2" | 63.0 - 63.6 | 71.8 - 72.4 | 200 | 10 |
| VJ-18 | 90 | 3" | 78.0 - 78.7 | 87.2 - 87.9 | 225 | 10 |
| VJ-19 | 100 | 4" | 101.6 - 102.6 | 111.2 - 112.3 | 275 | 5 |
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
