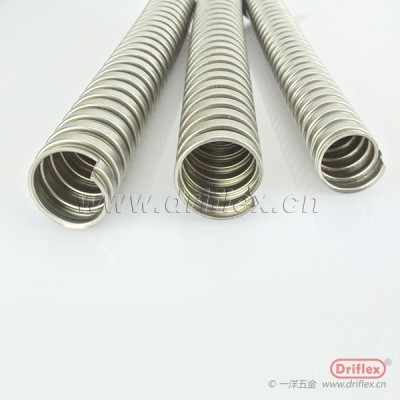

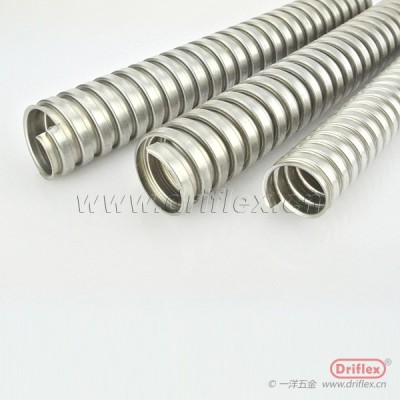

不锈钢单勾软管
Model: SS-12
Description:
不锈钢制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
Part No
Normial Size
Inner Diameter
mm
Outside Diameter
mm
O.D After PVC Coated
Length Of Each Roll
Interlocked
Squarelocked
M
SS-10
3/8"
12.5
15.7
18.0
16.6
50
SS-11
1/2"
15.7
19.1
21.3
20.0
50
SS-12
3/4"
20.8
24.3
26.7
25.5
50
SS-13
1"
26.0
30.0
33.2
31.6
30
SS-14
1-1/4"
35.0
40.0
42.2
42.0
30
SS-15
1-1/2"
40.0
45.0
48.0
47.0
20
SS-16
2"
51.0
56.0
59.6
59.0
10
Model: SS-12
Description:
不锈钢制成,结构牢固,绝缘性能和防水性能。挠性好，高抗拉、抗破环性强、抗疲劳性能高。 耐高温、耐冲击、耐腐蚀强，可抵抗不当扭转损坏等特点。
|
Part No
|
Normial Size
|
Inner Diameter
mm
|
Outside Diameter
mm
|
O.D After PVC Coated
|
Length Of Each Roll
|
|||
|
Interlocked
|
Squarelocked
|
M
|
||||||
| SS-10 | 3/8" | 12.5 | 15.7 | 18.0 | 16.6 | 50 | ||
| SS-11 | 1/2" | 15.7 | 19.1 | 21.3 | 20.0 | 50 | ||
| SS-12 | 3/4" | 20.8 | 24.3 | 26.7 | 25.5 | 50 | ||
| SS-13 | 1" | 26.0 | 30.0 | 33.2 | 31.6 | 30 | ||
| SS-14 | 1-1/4" | 35.0 | 40.0 | 42.2 | 42.0 | 30 | ||
| SS-15 | 1-1/2" | 40.0 | 45.0 | 48.0 | 47.0 | 20 | ||
| SS-16 | 2" | 51.0 | 56.0 | 59.6 | 59.0 | 10 | ||
