一、设备说明：
瑞士STORZ MEDICAL AG公司成立于1987年，是隶属于德国KARL STORZ集团的一家瑞士公司。公司总部设于瑞士泰格维伦的康斯坦茨湖边，通过其各地的分公司和合作伙伴经营全球的业务，确保优质便捷的服务。瑞士STORZ的物理学家和工程师所追求的目标是不断改善冲击波技术、推出新的设备理念、与领先的医疗研究所开展密切合作以扩展适应症范围。
过去，瑞士STORZ的产品在泌尿科已经有无数的成功病例。近年来，由于非侵入性的冲击波技术具有多领域应用的可能性以及独特优势，已被扩展至泌尿系以外的许多医疗领域。凭借最先进的技术创新，STORZ MEDICAL公司在疼痛康复科、心内科、骨科、泌尿科、风湿科、胃肠科、皮肤科和耳鼻喉科、康复医学、美容医学和动物医学不断设立行业新标准。2011年，全球每天都有35,000台STORZ MEDICAL冲击波设备在为医生和患者提供服务。
瑞士STORZ拥有无数开创性的成就，如发明了电磁式圆筒线圈冲击波源、首次将冲击波应用于心血管重建（运用聚焦式、平面式与散焦式冲击波的联合疗法）等，瑞士STORZ MEDICAL AG公司为冲击波治疗开创了广大的应用平台，充分证明了该疗法的广泛适应性和有效性。
瑞士Storz于2009年3月推出了全新放射式冲击波发射器。新的放射式冲击波发射器克服了市面上传统气动弹导发射器于高频率操作时出现能量损失的缺陷。瑞士Storz的全新放射式冲击波发射器能确保高水平的气压/频率稳定，能于21Hz高频率操作提供高能量输出。
瑞士Storz便携体外冲击波疼痛治疗仪MASTERPULS® ONE优势：
☆免除外科手术；
☆疗效确切，治愈率达80-90%；
☆非侵入式，无创；
☆不伤及正常组织，只针对病处尤其是坏死细胞起作用；
☆不需住院治疗，不影响正常生活；
冲击波是一种通过物理学机制介质（空气或气体）传导的机械性脉冲压强波，将气动产生的脉冲声波转换成精确的弹道式冲击波，透过冲击波治疗探头的定位和移动，可以对疼痛发生较广泛的人体组织产生良好的治疗效果。
主要应用领域：骨科，疼痛科，康复科，运动医疗。
适应症有哪些？
放射式压力波适用于肩周炎、肱骨外上髁炎（网球肘）、肱骨内上髁炎（高尔夫肘）、跟腱炎、跟痛症、足底筋膜炎、髌腱炎、胫前痛综合症、腰椎间盘突出、骨不连、股骨头坏死（I期II期）、慢性肌筋膜疼痛综合症等慢性软组织损伤性疾病、糖尿病足、压疮等慢性体表溃疡等。
治疗优势有哪些？
能减少或完全替代止痛药的用量、推拿按摩、物理治疗等方法进而节省治疗费用。
相对于传统的外科手术该项目技术有很多优势，如不用住院，大部分患者可以感觉疼痛大为降低，并发症少，治疗周期短，治疗风险低，治愈率高；已成为全新的非手术治疗方法。
医保收费标准：340100035；省级收费460/次，市级收费400/次，县级收费330/次，纳入报销比例100%。
二、MASTERPULS ONE®
Radial Pressure Wave.
Product video MASTERPUL ONE

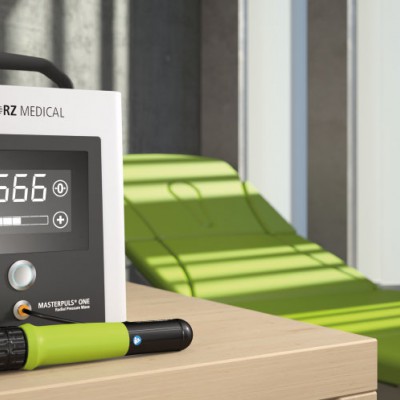

The new radial pressure wave system MASTERPULS® ONE has been developed with a clear focus on maximum ease of use, compact design, high efficiency and perfect mobility.
The MASTERPULS® ONE is ideal for use as a compact and flexible pressure wave starter model for the treatment of all standard indications.
■ Ideal starter model or add-on
■ Easy to use and versatile in the application
■ Best »shock wave therapy companion«, even outside the therapist’s office
■ Dimensions: 289 x 238 x 310 mm
■ Weight: 9.8 kg
■ 6 energy levels: 6 – 18 Hz / max. 2.7 bareff
The SPARROWTM handpiece of the MASTERPULS® ONE
Kinetic energy is introduced into the target area inside the patient’s body as the compressed air-powered projectile strikes the elastically suspended transmitter. The pressure waves produced in this manner propagate across large tissue areas.
The newly developed SPARROWTM radial handpiece is minimalist design at its best. Excellent damping during pressure wave generation reduces handpiece vibrations. As a result, the MASTERPULS® ONE is approved for operation far longer than a working day, longer than many other radial pressure wave systems available today. Thanks to its light-weight design and ergonomic shape, the SPARROWTM handpiece ensures effortless handling and treatment. The handpiece can be serviced directly by the user, which saves costs.
■ Energy input over large tissue areas
■ Light-weight design and minimal vibrations
■ Effortless treatment
■ Reliable and cost-effective
Transmitters and handpiece replacement
The treatment result is decisively determined by the quality and efficiency of pressure wave transmission based on the specific disorder to be treated. In addition to the D20-S transmitter delivered with the SPARROWTM handpiece, other optional transmitters are available: R15, C15, DI15 and D20-T. These transmitters have been used with great success for many years on various systems in STORZ MEDICAL’s MASTERPULS® line. They are ideal for the treatment of all typical pressure wave indications such as tendinopathy, heel and shoulder pain, myofascial trigger points or fascia treatment.

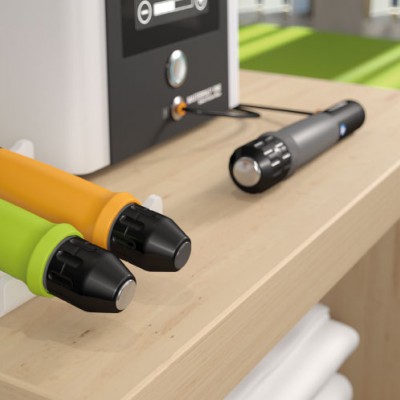

The simple snap-in connection enables quick and easy replacement of the handpiece, using different transmitters.
■ Proven transmitters for different indications
■ Simple transmitter replacement
■ Snap-in connection for handpiece replacement
■ Various optional handpiece colours
Mode of action of radial pressure waves
The mechanical action of pressure waves in tissue stimulates the nervous system and causes nitrid oxide and other messenger substances to be released. The effects produced in this manner include improved metabolism and angiogenesis and the release of vascular endothelial growth factors. All these effects may eventually reduce chronic pain.
Typical indications:
■ Achillodynia
■ Calcific tendinitis
■ Lateral/medial epicondylitis
■ Plantar fasciitis
■ Patellar tendinitis
■ Tibial stress syndrome
■ Trochanteric tendinopathy
■ Trigger points: cervical syndrome
■ Trigger points: dorsalgia
■ Trigger points: forearm muscles
■ Trigger points: lumbago
■ Trigger points: shortened calf muscles
■ Trigger points: thigh adductors
