Parker Snap-tite 75 Series Thread-to-Connect Quick Disconnect Coupling快速接头
“Fire Safe” Coupling Approved for use in Canada and on Offshore Oil & Gas platforms
“Fire Safe” 和挪威DNV认证，BOP 和API标准 -耐温达700度
Parker Snap-Tite 75系列快速接头产品应用：
抗震性液压场合应用。油田 、近海钻探、采油机械（连续油管作业车）、起重机、牵引车等。“Fire Safe” Coupling Approved for use in Canada and on Offshore Oil & Gas platforms
Parker Snap-tite 75 Series Couplings PDF_下载
Parker 75系列快换接头中文技术资料下载
Parker Snap-Tite 75系列快速接头 产品特性：
ACME螺纹连接结构Acme Thread-to-Connect Design
双单向阀，双截止结构；Double Shut-Off Configuration
材质：镀钢、316不锈钢；Construction - Plated steel or 316 stainless steel
尺寸规格：3/4″到4″；Available Sizes - 3/4" thru 4"
工作压力：3000psi (345bar)；Working Pressure - To 5,000 psi (345 bar)
符合API16D标准"Firesafe" version to API 16D & EUB directive #36
获得挪威船级社DNV认证
选型资料（插入链接）
压降低Low Pressure Drop
高流量下工作High Flow Capacity
连接压力可高达3000psi(207bar)Connect Under Pressure Capability - Can be connected against pressures up to 3,000 psi (207 bar)
Parker Snap-Tite 75 Series Thread to Connect Couplings PDF Catalog
特征：
- 螺纹连接型快换
- 最大尺寸可达4"
- 可在背压下连接
- 可选碳钢和不锈钢材料
应用举例：
- 油田设备
- 海工行业
- 发动机测试台

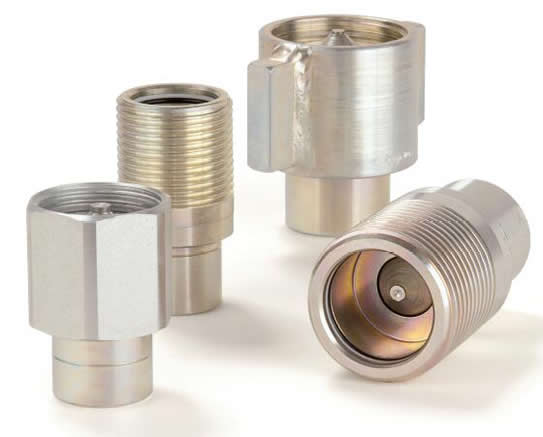

Snap-Tite 75 Series Thread to Connect Couplings
Parker 75系列技术参数
本体尺寸
3/4
1
1 1/4
1 1/2
2
2 1/2
3
4
额定压力
碳钢
345
345
345
345
345
207
207
28
不锈钢
207
207
207
207
207
注：
1、本体材料：碳钢，316不锈钢
2、密封材料及温度范围：丁晴橡胶：-40°C 至+100°C
3、额定压力：该额定压力为静压状态下的最大工作压力，应用于动态压力场合时，快换的最大工作压力约为所列值的0.6倍。爆破压力为额定压力的2-4倍，详情请咨询我司销售人员。
Parker Snap-tite 75 Series Construction Mobile Heavy Duty, thread-to-Connect Hydraulic Coupling for Construction/Mobile Equipment
型号
Material
Coupling Half
Coupling Size
End Size
End Type
Seal Material
75C12-12F
Plated Steel
Coupler
3/4
3/4
Female
Buna N
75C16-16F
Plated STeel
Coupler
1
1
Female
Buna N
75C20-20F
Plated Steel
Coupler
1-1/4
1-1/4
Female
Buna N
75C24-24F
Plated Steel
Coupler
1-1/2
1-1/2
Female
Buna N
75C32-32F
Plated Steel
Coupler
2
2
Female
Buna N
75N12-12F
Plated STeel
Nipple
3/4
3/4
Female
Buna N
75N16-16F
Plated STeel
Nipple
1
1
Female
Buna N
75N20-20F
Plated Steel
Nipple
1-1/4
1-1/4
Female
Buna N
75N24-24F
Plated Steel
Nipple
1-1/2
1-1/2
Female
Buna N
75N32-32F
Plated Steel
Nipple
2
2
Female
Buna N
Parker Snap-Tite 75 Series - The very rugged 75 Series coupling is designed and constructed for high pressure hydraulics transfer service. It's heavy duty Acme Thread-to-Connect design is great for fluid transfer and where connection-under-pressure (static) to 3,000 psi (207 bar) is required.
Also available in "Dry-Break" no-spill design to help meet environmental requirements.
75 Series : General Purpose Poppet Coupling
Heacy Duty, Thread-to-Connect Hydraulic Coupling
Parker Snap-Tite 75 Series Thread to Connect Couplings PDF Catalog
Snap-Tite 75 Series Thread to Connect Couplings BENEFITS
The 75 Series thread-to-connect quick disconnect coupling is a screw together style unit designed to shut off automatically under normal conditions in both the coupler and nipple halves when the unit is being disconnected. A wide range of seal materials is available for various applications including those involving the use of fire-resistant hydraulic fluids. The 75 Series is a very rugged unit capable of use in abusive situations. A "Dry-Break" version is also available (75 db)
75N12-12F
75N16-16F
75N20-20F
75N24-24F
75N32-32F
75N40-40F
75N64-64F
75N12-SPK
75N16-SPK
75N20-SPK
75N24-SPK
75N32-SPK
75N40-SPK
75N64-SPK
75MDC-12
75MDC-16
75MDC-20
75MDC-24
75MDC-32
75MDC-40
75MDC-64
Size Dust Plug Dust Cap Coupler Kits Nipple Kits 3/4 1 1-1/4 1-1/2 2 2-1/2 4 75MDP-12 75MDP-16 75MDP-20 75MDP-24 75MDP-32 75MDP-40 75MDP-64 75MDC-12 75MDC-16 75MDC-20 75MDC-24 75MDC-32 75MDC-40 75MDC-64 75C12-SPK 75C16-SPK 75C20-SPK 75C24-SPK 75C32-SPK 75C40-SPK 75C64-SPK 75N12-SPK 75N16-SPK 75N20-SPK 75N24-SPK 75N32-SPK 75N40-SPK 75N64-SPK
75C12-12RP
75C16-16RP
75C20-20RP
75C24-24RP
75C12-12RP 3/4" 345
75C16-16RP 1" 345
75C20-20RP 1 1/4"" 345
75C24-24RP 1 1/2" 345
75C32-32RP 2" 345
75N12-12RP
75N16-16RP
75N20-20RP
75N24-24RP
75MDC-12
75MDC-16
75MDC-20
75MDC-24
75MDC-32
75MDP-12
75MDP-16
75MDP-20
75MDP-24
75MDP-32
75N12-12F
75N12-12FV
75N12-12RP
75N12-12RPV
75N16-16F
75N16-16FV
75N16-16RP
75N16-16RPV
75N20-20F
75N20-20FV
75N20-20RP
75N20-20RPV
75N24-24F
75N24-24FV
75N24-24RP
75N24-24RPV
75N32-32F
75N32-32FV
75N-32-32RP
75N-32-32RPV
3/4 75C12-12F 345 S75C12-12F 207 3/4-14 NPTF** 72 1 7/8" *** 1 3/4-8
3/4 75C12-12RP 345 S75C12-12RP 207 G 3/4 72 1 7/8" *** 1 3/4-8
1 75C16-16F 345 S75C16-16F 207 1-11 1/2 NPTF** 88 108 2 1/4-6
1 75C16-16RP 345 S75C16-16RP 207 G 1 88 108 2 1/4-6
1 1/4 75C20-20F 345 S75C20-20F 207 1 1/4-11 1/2 NPTF** 112 121 2 5/8-6
1 1/4 75C20-20RP 345 S75C20-20RP 207 G 1 1/4 112 121 2 5/8-6
1 1/2 75C24-24F 345 S75C24-24F 207 1 1/2-11 1/2 NPTF** 128 146 3 1/4-4
1 1/2 75C24-24RP 345 S75C24-24RP 207 G 1 1/2 128 146 3 1/4-4
2 75C32-32F 345 S75C32-32F 207 2-11 1/2 NPTF** 154 172 4-4
2 75C32-32RP 345 S75C32-32RP 207 G 2 154 172 4-4
2 1/2 75C40-40F 207 -- -- 2 1/2-8 NPTF** 135 203 5-4
3 75C48-48F 207 -- -- 3-8 NPTF** 149 216 6-4
4 75C64-64F 28 -- -- 4-8 NPT 181 280 6 5/8-4
3/4 75N12-12F 345 S75N12-12F 207 3/4-14 NPTF** 83 40 1 3/4-8
3/4 75N12-12RP 345 S75N12-12RP 207 G 3/4 83 40 1 3/4-8
1 75N16-16F 345 S75N16-16F 207 1-11 1/2 NPTF** 106 48 2 1/4-6
1 75N16-16RP 345 S75N16-16RP 207 G 1 106 48 2 1/4-6
1 1/4 75N20-20F 345 S75N20-20F 207 1 1/4-11 1/2 NPTF** 136 61 2 5/8-6
1 1/4 75N20-20RP 345 S75N20-20RP 207 G 1 1/4 136 61 2 5/8-6
1 1/2 75N24-24F 345 S75N24-24F 207 1 1/2-11 1/2 NPTF** 152 70 3 1/4-4
1 1/2 75N24-24RP 345 S75N24-24RP 207 G 1 1/2 152 70 3 1/4-4
2 75N32-32F 345 S75N32-32F 207 2-11 1/2 NPTF** 179 76 4-4
2 75N32-32RP 345 S75N32-32RP 207 G 2 179 76 4-4
2 1/2 75N40-40F 207 -- -- 2 1/2-8 NPTF** 190 68 5-4
3 75N48-48F 207 -- -- 3-8 NPTF** 210 59 6-4
4 75N64-64F 28 -- -- 4-8 NPT 239 75 6
3/4 75MDP-12 75MDC-12
1 75MDP-16 75MDC-16
1 1/4 75MDP-20 75MDC-20
1 1/2 75MDP-24 75MDC-24
2 75MDP-32 75MDC-32
2 1/2 75MDP-40 75MDC-40
3 75MDP-48 75MDC-48
4 75MDP-64 75MDC-64
3/4 75C12-SPK 75N12-SPK
1 75C16-SPK 75N16-SPK
1 1/4 75C20-SPK 75N20-SPK
1 1/2 75C24-SPK 75N24-SPK
2 75C32-SPK 75N32-SPK
2 1/2 75C40-SPK 75N40-SPK
3 75C48-SPK 75N48-SPK
4 75C64-SPK 75N64-SPK
