Parker快速接头，parker QHPA Series螺纹连接型快速接头，派克快速接头

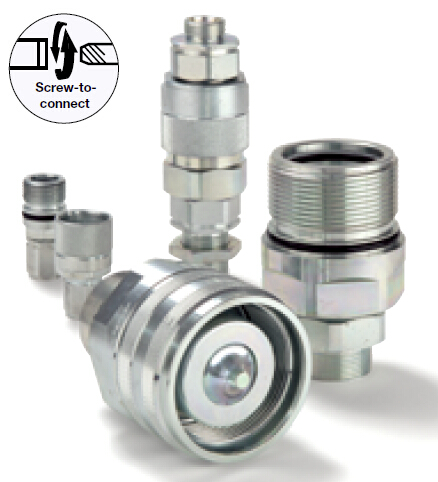

Parker QHPA SERIES COUPLINGS
特征：
- 螺纹连接型快换
- 自锁式螺纹
- 外部密封圈，可防止灰尘进入系统
应用举例：
- 农用机械
- 工程机械
- 工业液压设备
Parker QHPA SERIES COUPLINGS
Parker QHPA系列快速接头技术参数
本体尺寸
inch
额定压力
bar
温度范围
本体材料
密封材料
3/8
450
-25°C 至 +110°C
碳钢，镀银
丁晴橡胶
1/2
400
3/4
370
1
300
注：
额定压力：该额定压力为快换本体的最大工作压力，实际所能承受的最大工作压力同时受限于尾端连接形式。具体工作压力请参加各产品 型号。
PARKER QHPA 系列 - 阴接头
3/8 QHPA53-D6X2-C M14 x 1.5 8 L 450 22 24 62 10
3/8 QHPA53-D6X3-C M16 x 1.5 10 L 450 22 24 63 11
3/8 QHPA53-D7X3-C M18 x 1.5 10 S 450 22 30 64 12
3/8 QHPA53-D7X4-C M20 x 1.5 12 S 450 22 24 64 12
1/2 QHPA54-D6X4-C M18 x 1.5 12 L 400 30 30 68 11
1/2 QHPA54-D6X5-C M22 x 1.5 15 L 400 30 30 69 12
1/2 QHPA54-D7X5-C M22 x 1.5 14 S 400 30 30 71 14
1/2 QHPA54-D7X6-C M24 x 1.5 16 S 400 30 30 71 14
3/4 QHPA56-D6X6-C M26 x 1.5 18 L 370 41 41 95 12
3/4 QHPA56-D6X7-C M30 x 2 22 L 250 41 41 97 14
3/4 QHPA56-D7X7-C M30 x 2 20 S 370 41 41 99 16
3/4 QHPA56-D7X8-C M36 x 2 25 S 370 41 41 101 18
1 QHPA58-D7X9-C M42 x 2 30 S 300 55 65 114 20
3/8 QHPA53-E6X2-C M14 x 1.5 8 L 450 22 24 76 25
3/8 QHPA53-E6X3-C M16 x 1.5 10 L 450 22 24 78 26
3/8 QHPA53-E7X4-C M20 x 1.5 12 S 450 22 24 78 27
1/2 QHPA54-E6X4-C M18 x 1.5 12 L 400 30 30 87 30
1/2 QHPA54-E6X5-C M22 x 1.5 15 L 400 30 30 84 27
1/2 QHPA54-E7X6-C M24 x 1.5 16 S 400 30 30 86 29
3/4 QHPA56-E6X6-C M26 x 1.5 18 L 370 41 41 115 32
3/4 QHPA56-E7X7-C M30 x 2 20 S 370 41 41 121 38
3/4 QHPA56-E7X8-C M36 x 2 25 S 370 41 41 121 38
1 QHPA58-E7X9-C M42 x 2 30 S 300 55 65 134 40
PARKER QHPA 系列 - 阳接头
3/8 QHPA13-D6X2-C M14 x 1.5 8 L 450 22 30 59 10 34
3/8 QHPA13-D6X3-C M16 x 1.5 10 L 450 22 30 60 11 34
3/8 QHPA13-D7X3-C M18 x 1.5 10 S 450 22 30 61 12 34
3/8 QHPA13-D7X4-C M20 x 1.5 12 S 450 22 30 61 12 34
1/2 QHPA14-D6X4-C M18 x 1.5 12 L 400 30 36 62 11 42
1/2 QHPA14-D6X5-C M22 x 1.5 15 L 400 30 36 63 12 42
1/2 QHPA14-D7X5-C M22 x 1.5 14 S 400 32 36 65 14 42
1/2 QHPA14-D7X6-C M24 x 1.5 16 S 400 30 36 65 14 42
3/4 QHPA16-D6X6-C M26 x 1.5 18 L 370 41 50 79 12 55
3/4 QHPA16-D6X7-C M30 x 2 22 L 250 41 50 81 14 55
3/4 QHPA16-D7X7-C M30 x 2 20 S 370 41 50 82 16 55
3/4 QHPA16-D7X8-C M36 x 2 25 S 370 41 50 85 18 55
1 QHPA18-D7X9-C M42 x 2 30 S 300 55 80 118
3/8 QHPA13-E6X2-C M14 x 1.5 8 L 450 22 30 74 25 34
3/8 QHPA13-E6X3-C M16 x 1.5 10 L 450 22 30 75 26 34
3/8 QHPA13-E7X4-C M20 x 1.5 12 S 450 22 30 76 27 34
1/2 QHPA14-E6X4-C M18 x 1.5 12 L 400 30 36 81 30 42
1/2 QHPA14-E6X5-C M22 x 1.5 15 L 400 30 36 78 27 42
1/2 QHPA14-E7X6-C M24 x 1.5 16 S 400 30 36 80 29 42
3/4 QHPA16-E6X6-C M26 x 1.5 18 L 370 41 50 102 27 55
3/4 QHPA16-E7X7-C M30 x 2 20 S 370 41 50 104 27 55
3/4 QHPA16-E7X8-C M36 x 2 25 S 370 41 50 105 38 55
1 QHPA18-E7X9-C M42 x 2 30 S 300 55 80 138 40 85
parker QHPW52F8A5WR-WF QHPW52F8A5WR-WF
parker QHPA58-KIT KIT JOINTS COUPLEUR QHPA 58
parker QHPA58-E7X9-C QHPA EMB. FEM. DIN 2353 30S
parker QHPA58-E7X9-B WED QHPA58-E7X9-C
parker QHPA58-DP QHPA58-DP
parker QHPA58-D7X9-C QHPA EMB. FEM. DIN 2353 30S
parker QHPA58-D7X10-C QHPA EMB. FEM. DIN 2353 38S
parker QHPA56-KIT KIT JOINTS COUPLEUR QHPA 56
parker QHPA56-G4X8-C QHPA56-G4X8
parker QHPA56-G4X6-C WED QHPA56-G4X6-C
parker QHPA56-E7X8-C QHPA EMB. FEM. DIN 2353 25S
parker QHPA56-E7X7-C QHPA EMB. FEM. DIN 2353 20S
parker QHPA56-E7X7-B WED QHPA56-E7X7-C
parker QHPA56-E6X6-C QHPA EMB. FEM. DIN 2353 18L
parker QHPA56-E6X6-B WED QHPA56-E6X6-C
parker QHPA56-DP QHPA56-DP
parker QHPA56-D7X8-C QHPA56-D7X8A
parker QHPA56-D7X7-C QHPA EMB. FEM. DIN 2353 20S
parker QHPA56-D6X7-C QHPA EMB. FEM. DIN2353 22L
parker QHPA56-D6X7-B WED QHPA56-D6X7-C
parker QHPA56-D6X6-C QHPA EMB. FEM. DIN 2353 18L
parker QHPA54-KIT KIT JOINTS COUPLEUR QHPA 54
parker QHPA54-G4X4-C QHPA EMB. FEM. G1/2"
parker QHPA54-F4B4-C QHPA COUPLER DIN 3852 FORM B
parker QHPA54-F4B4-B WED QHPA54-F4B4-C
parker QHPA54-E7X6-C QHPA EMB. FEM. DIN 2353 16S
parker QHPA54-E6X5-C WED QHPA54-E6X5-C
parker QHPA54-E6X4-C QHPA EMB. FEM. DIN 2353 12L
parker QHPA54-DP QHPA54-DP
parker QHPA54-D7X6-C QHPA EMB. FEM. DIN 2353 16S
parker QHPA54-D7X6-B WED QHPA54-D7X6-C
parker QHPA54-D6X5-C QHPA EMB. FEM. DIN 2353 15L
parker QHPA54-D6X4-C QHPA EMB. FEM. DIN 2353 12L
parker QHPA53-KIT KIT JOINTS COUPLEUR QHPA 53
parker QHPA53-G4X3-C QHPA COUPLER 3/8'' BSPP
parker QHPA53-F4B3-C QHPA COUPLER DIN 3852 FORM B
parker QHPA53-F4B3-B WED QHPA53-F4B3-C
parker QHPA53-E7X4-B WED QHPA53-E7X4-C
parker QHPA53-E6X3-C QHPA53-E6X3
parker QHPA53-E6X2-C QHPA EMB. FEM. DIN 2353 8L
parker QHPA53-DP QHPA53-DP
parker QHPA53-D7X4-C QHPA EMB. FEM. DIN 2353 12S
parker QHPA53-D7X4-B WED QHPA53-D7X4-C
parker QHPA53-D7X3-C QHPA EMB. FEM. DIN 2353 10S
parker QHPA53-D7X3-B WED QHPA53-D7X3-C
parker QHPA53-D6X3-C QHPA EMB. FEM. DIN 2353 10L
parker QHPA53-D6X2-C QHPA EMB. FEM. DIN 2353 8L
parker QHPA24-6 QHPA24-6
parker QHPA18-DC QHPA18-DC
parker QHPA18-D7X9-C QHPA EMB. MALE DIN2353 30S
parker QHPA16-G4X8-C QHPA16-G4X8
parker QHPA16-G4X6-C QHPA16-G4X6
parker QHPA16-E7X8-C WED QHPA16-E7X8-C
parker QHPA16-E7X7-C QHPA EMB. MALE DIN2353 20S
parker QHPA16-E6X6-C QHPA EMB. MALE DIN2353 18L
parker QHPA16-DC QHPA16-DC
parker QHPA16-D7X8-C QHPA EMB. MALE DIN2353 25S
parker QHPA16-D7X7-C QHPA EMB. MALE DIN2353 20S
parker QHPA16-D6X7-C QHPA EMB. MALE DIN2353 22L
parker QHPA16-D6X7-B WED QHPA16-D6X7-C
parker QHPA16-D6X6-C QHPA EMB. MALE DIN2353 18L
parker QHPA14-G4X4-C QHPA EMB. MALE G1/2"
parker QHPA14-F4B4-C QHPA NIPPLE DIN 3852 FORM B
parker QHPA14-F4B4-B WED QHPA14-F4B4-C
parker QHPA14-E7X6-B QHPA14-E7X6A
parker QHPA14-E6X5-C QHPA EMB. MALE DIN2353 15L
parker QHPA14-E6X5-B WED QHPA14-E6X5-C see QHPA14-E6X5-C
parker QHPA14-E6X4-C QHPA EMB. MALE DIN2353 12L
parker QHPA14-DC QHPA14-DC
parker QHPA14-D7X6-C QHPA EMB. MALE DIN 2353 16S
parker QHPA14-D6X5-C QHPA EMB. MALE DIN2353 15L
parker QHPA14-D6X4-C QHPA EMB. MALE DIN2353 12L
parker QHPA13-G4X3-C QHPA13-G4X3
parker QHPA13-F4B3-C QHPA NIPPLE DIN 3852 FORM B
parker QHPA13-F4B3-B WED QHPA13-F4B3-C
parker QHPA13-E6X3-C QHPA EMB. MALE DIN 2353 10L
parker QHPA13-E6X3-B WED QHPA13-E6X3-C
parker QHPA13-E6X2-B WED QHPA13-E6X2-C
parker QHPA13-DC QHPA13-DC
parker QHPA13-D7X4-C QHPA EMB. MALE DIN2353 12S
parker QHPA13-D7X4-B WED QHPA13-D7X4-C
parker QHPA13-D7X3-C QHPA EMB. MALE DIN2353 10S
parker QHPA13-D6X3-C QHPA EMB. MALE DIN2353 10L
parker QHPA13-D6X2-C QHPA EMB. MALE DIN2353 8L
parker QHPA13-D6X2-B WED QHPA13-D6X2-C
