Parker FF SERIES QUICK COUPLINGS_Parker 快换接头和附件

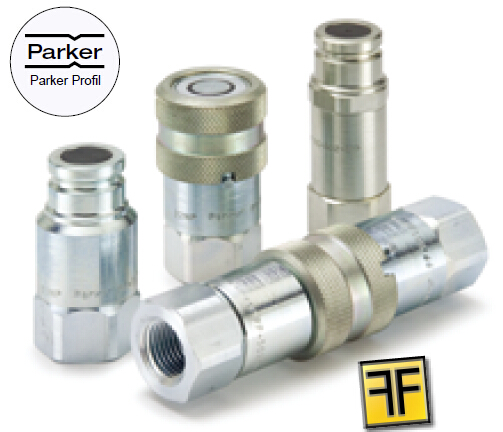

Parker FF Series Flush Face Non-Spill Couplings
自1929年起，派克就已经开始给客户提供可靠的流体传动技术服务。我们的许多专业知识来自派克精密制造的工业和通用接头。派克拥有80多年的产品设计、工程、应用技术和制造方面经验，是管接头行业的领导者，为全球的各种应用提供管接头。 parker快速接头，parker派克FF系列无溢流型快速接头广泛应用于以下公用设施：液压油泄漏会构成严重的安全险情，尤其对用于高压电源输送线维护的架空斗式起重机。这类接头还用于建筑、铁路维护及矿业中的液压机具之快速切换，易于清理使之能理相地用于这类特殊环境。
Parker快速接头，parker FF SERIES无溢流型快速接头,派克快速接头
FF全系列parker无溢流型快速接头
特征：
- 符合Parker标准要求
- 平齐端面阀芯，无溢流
- 快插式连接
- 标配套筒锁
- 阳接头可选背压释放器设计
应用举例：
- 工程机械
- 液压工具
Parker FF Series Flush Face Non-Spill Couplings
Parker FF Series Non-Spill Couplings eliminate spillage and air inclusion when connecting and disconnecting attachments. The 3/8" body size complies with Hydraulic Tool Manufacturers Association (HTMA) standards. A connect-under-pressure nipple option is available for trapped pressures up to 3,000 psi on the nipple side. Ease of cleaning makes them ideal for use in hostile environments.
规格参数
- Push-to-connect design
- Flush face, non-spill valving
- Hardened steel sleeves and nipple bodies
- Standard locking sleeve
- Blow-out resistant seal
- Protective trivalent zinc plating with clear trivalent chromate finish
- Compatible with Phosphate Ester fluids
市场应用Applications:
- Hydraulic tools and test benches
- Hydraulic lines and connections
- Instrumentation calibration connections
- Lubrication systems (drums to oil and grease lines)
> Learn more about FF Series Flush Face Non-Spill Couplings
FF 系列 - 阴接头
1/4 FF-251-4FP 1/4-18 NPSF 350 1 46 27
3/8 FF-371-6FP 3/8-18 NPSF 210 1 1/16 61 31
1/2 FF-501-8FP 1/2-14 NPSF 210 1 1/4 77 40
3/4 FF-751-12FP 3/4 -14 NPSF 210 1 3/4 89 50
1 FF-1001-16FP 1-11 1/2 NPSF 210 1 7/8 105 58
FF 系列 - 阳接头
带背压释放器
1/4 FF-252-4FP 1/4-18 NPSF 350 1 43 30 27
3/8 FF-372-6FP 3/8-18 NPSF 210 15/16 59 44 27
1/2 FF-502-8FP 1/2-14 NPSF 210 1 1/4 70 54 35
3/4 FF-752-12FP 3/4-14 NPSF 210 1 1/2 86 63 44
1 FF-1002-16FP 1-11 1/2 NPSF 210 1 7/8 98 66 55
3/8 FC-372-6FP 3/8-18 NPSF 210 1 1/16 84 66 30
1/2 FC-502-8FP 1/2-14 NPSF 210 1 1/8 88 68 31
3/4 FC-752-12FP 3/4-14 NPSF 210 1 1/2 122 95 42
FF 系列 - 防尘盖
1/4 FR-25 黑色橡胶FR-25 黑色橡胶
3/8 NR-50 黑色橡胶NR-37 黑色橡胶
1/2 FR-501 黑色橡胶FR-502 黑色橡胶
3/4 FR-751 黑色橡胶FR-752 黑色橡胶
1 FR-1001 黑色橡胶FR-1002 黑色橡胶
FF 系列 - 维修包
1/4 FF-251-KIT FF-251-KIT-E4 FF/FS-251-TOOL FF-252-KIT FF-252-KIT-E4
3/8 FF-371-KIT FF-371-KIT-E4 FF/FS-371-TOOL FF-372-KIT FF-372-KIT-E4
1/2 FF-501-KIT FF-501-KIT-E4 FF/FS-501-TOOL FF-502-KIT FF-502-KIT-E4
3/4 FF-751-KIT FF-751-KIT-E4 FF/FS-751-TOOL FF-752-KIT FF-752-KIT-E4
1 FF-1001-KIT FF-1001-KIT-E4 FF/FS-1001-TOOL FF-1002-KIT FF-1002-KIT-E4
parker快速接头，parker派克FF系列无溢流型快速接头主要型号：
FF-1001-16FB,FF-1001-16FO,FF-1001-16FP,FF-1002-16FB,FF-1002-16FO
FF-1002-16FP,FF-201-4FB,FF-202-4FB,FF-251-4FP,FF-251-4MP
FF-251-4MP-E4,FF-251-6FO,FF-252-4FP,FF-252-4MP,FF-252-4MP-E4
FF-252-4MP-E5,FF-252-6FO,FF-371-6FB,FF-371-6FP,FF-371-6FP-E5
FF-371-8FB,FF-371-8FO,FF-371-8FP,FF-371-8FP-E4,FF-372-6FB
FF-372-6FP,FF-372-6FP-E5,FF-372-8FB,FF-372-8FO,FF-372-8FP
FF-372-8FP-E4,FF-501-10FO,FF-501-8FB,FF-501-8FP,FF-501-8FP-E4
FF-502-10FO,FF-502-8FB,FF-502-8FP,FF-502-8FP-E4,FF-751-12FB
FF-751-12FO,FF-751-12FP,FF-751-12FP-E4,FF-751-KIT,FF-752-12FB
FF-752-12FO,FF-752-12FP,FF-752-12FP-E4,FF-752-KIT
FF-1001-16FB PARKER
FF-1001-16FO PARKER
FF-1001-16FP PARKER
FF-1002-16FB PARKER
FF-1002-16FO PARKER
FF-1002-16FP PARKER
FF-201-4FB PARKER
FF-202-4FB PARKER
FF-371-6FP PARKER
FF-371-8FO PARKER
FF-371-8FP PARKER
FF-372-8FB PARKER
FF-372-8FO PARKER
FF-372-8FP PARKER
FF-501-10FO PARKER
FF-501-8FB PARKER
FF-501-8FP PARKER
FF-502-10FO PARKER
FF-502-8FB PARKER
FF-502-8FP PARKER
FF-751-12FB PARKER
FF-751-12FO PARKER
FF-751-12FP PARKER
FF-752-12FB PARKER
FF-752-12FO PARKER
FF-752-12FP PARKER
Parker FF Series Non-Spill Couplings eliminate spillage and air inclusion when connecting and disconnecting attachments. The 3/8" body size complies with Hydraulic Tool Manufacturers Association (HTMA) standards. A connect-under-pressure nipple option is available for trapped pressures up to 3,000 psi on the nipple side. Ease of cleaning makes them ideal for use in hostile environments.
FEATURES AND BENEFITS
- Push-to-connect design
- Flush face, non-spill valving
- Hardened steel sleeves and nipple bodies
- Standard locking sleeve
- Blow-out resistant seal
- Protective trivalent zinc plating with clear trivalent chromate finish
- Compatible with Phosphate Ester fluids
Applications:
- Hydraulic tools and test benches
- Hydraulic lines and connections
- Instrumentation calibration connections
- Lubrication systems (drums to oil and grease lines)
> Learn more about FF Series Flush Face Non-Spill Couplings
